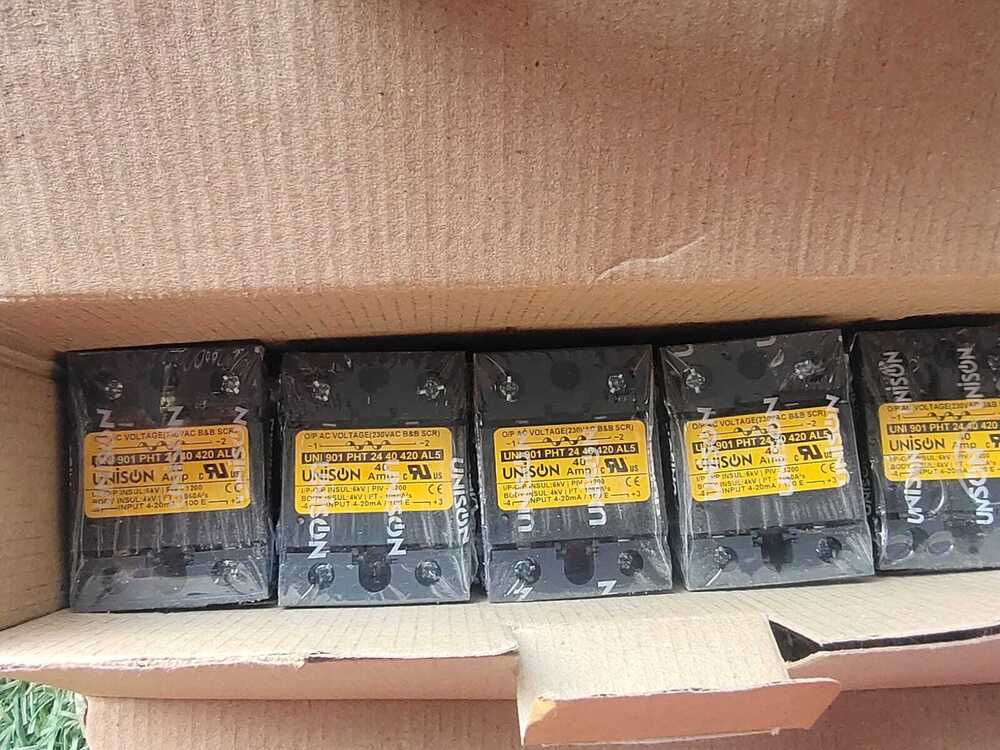

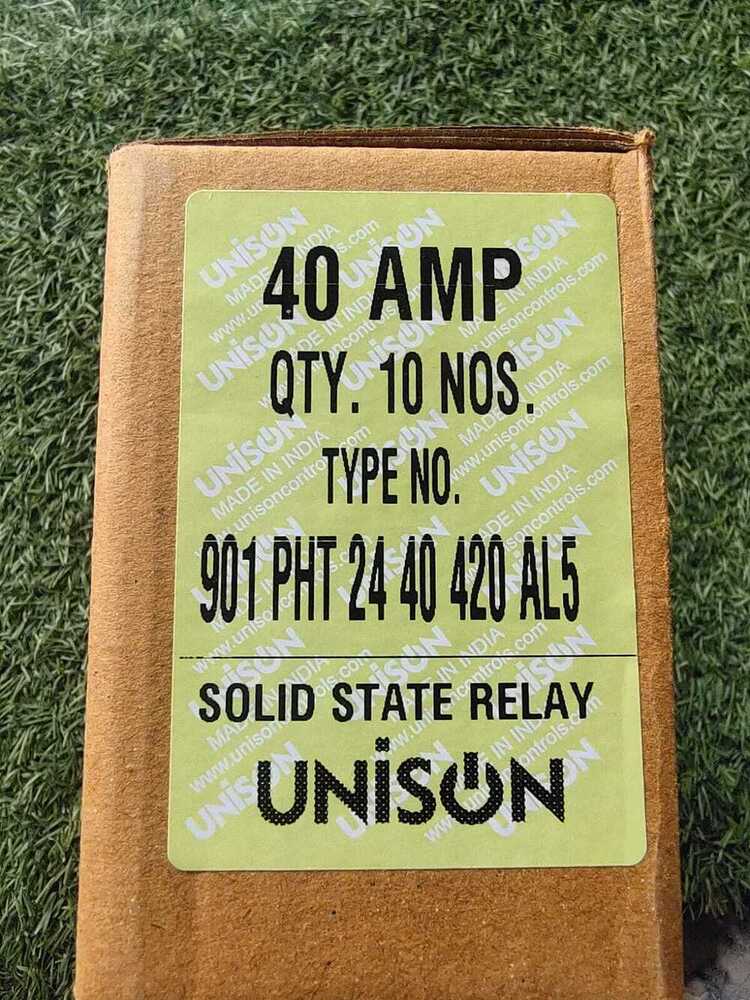

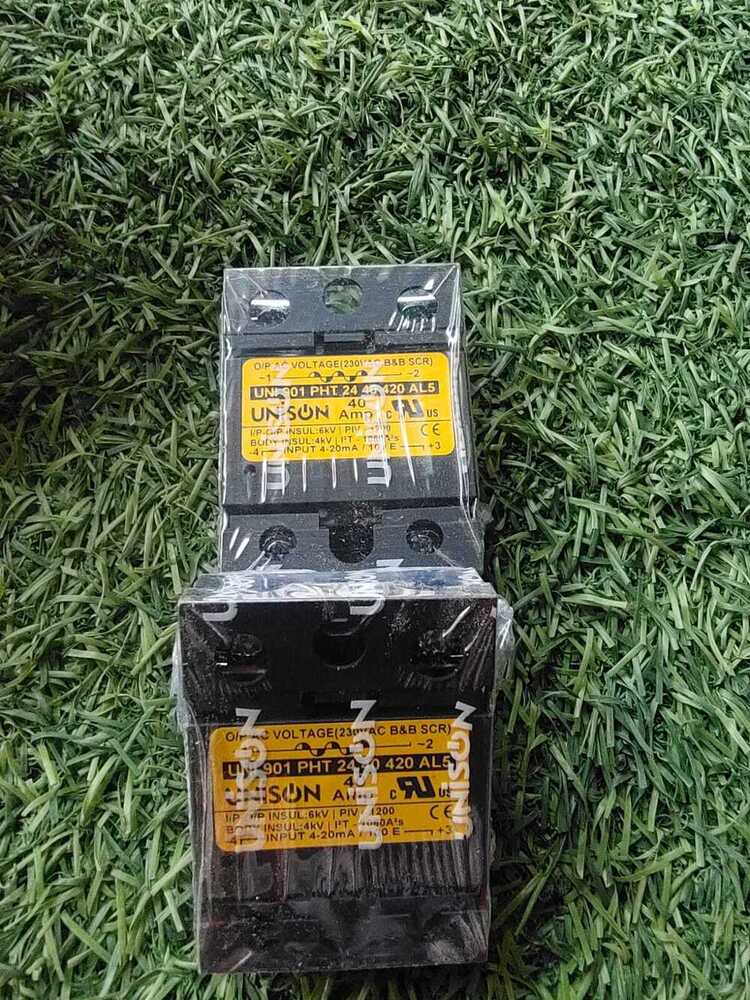

UNISON SSR 40A

Name: UNISON SSR 40A
Brand: YARA TECHNOLOGIES
Price: 882 INR
Availability: InStock

Price 882 INR/ Number

Get a Price/Quote

UNISON SSR 40A Specification

Power Factor
High efficiency, Power factor >0.95

Connector Type
Screw Connector

Shape
Rectangular

Insulation Material
High Grade Plastic

Feature
High Switching Speed, Noiseless Operation

Overheating Protection
No (External Heatsink Advised)

Efficiency
98%

IP Rating
IP20

Operating Temperature
-25C to 80C

Surface Finish
Matte / Glossy

Mounting Type
Panel Mount

Humidity %
Max 85% RH

Product Type
Solid State Relay (SSR)

Application
Industrial Automation, Motor Control, HVAC, Heaters

Protection Level
Standard Protection

Frequency (MHz)
50-60 Hz

Rated Voltage
24-380V AC Output

Energy Consumption
Low Power Consumption

Output Type
AC

Color
Black / Yellow Label

Dimension (L*W*H)
Approx. 57 x 45 x 24 mm

Weight
Approx. 120g

Input Voltage
3-32V DC

Phase
Single Phase

Size
Standard SSR Size

Connection Type
Screw Terminals

No Of Poles
1-Pole

Material
Plastic/Metal Housing

Control Method
Photo Triac Coupler

Response Time
Less than 10 ms

Relay Type
Zero Cross Type

Trigger Current
>7.5mA

Maximum Output Current
40A

Model Number
SSR-40A

Dielectric Strength
2500V AC for 1 min

About UNISON SSR 40A

Discover a supreme deal with the UNISON SSR 40A-engineered for lavish industrial automation and towering performance. This Zero Cross Type Solid State Relay boasts a commanding maximum output of 40A, a swift response time under 10 ms, and a robust dielectric strength of 2500V AC for 1 minute. Thanks to its advanced Photo Triac Coupler control and high-grade plastic/metal housing, it ensures reliable, noiseless operation. Featuring low power consumption, high efficiency (>98%), and versatile application, try now and find the perfect fit for your automation and control needs!

Key Application Areas & Usage Method

The UNISON SSR 40A thrives in demanding environments such as industrial automation, HVAC control systems, motor management, and heater circuits. Designed for seamless integration, it is ideally used for switching high voltages and currents in single-phase applications. Installation is straightforward with panel mounting and screw terminals, making it an excellent choice for quick deployment in industrial setups, ensuring both efficiency and dependable operation across extensive usage scenarios.

Domestic & Export Markets, Packaging, and Supply Process

UNISON SSR 40A is predominantly supplied across India's major industrial centers, serving as the main domestic market. Our products are reliably packaged for optimal safety during transit, ensuring quality upon handover. We cater to global demand, with main export markets including Southeast Asia, the Middle East, and Africa. Dispatch through prominent FOB ports accelerates the delivery process, guaranteeing steady supply and quick access for wholesalers, manufacturers, and suppliers worldwide.

FAQ's of UNISON SSR 40A:

Q: How do I install the UNISON SSR 40A solid state relay?

A: Installation requires panel mounting using the screw terminals and connectors provided. Ensure proper heatsink attachment for optimal thermal management, as the unit does not feature internal overheating protection.

Q: What industries benefit from using the UNISON SSR 40A?

A: Industries involved in automation, HVAC, motor control, and heating systems receive significant benefits from the SSR-40A due to its high current handling, reliability, and fast switching speed.

Q: When should I use a zero cross type relay like the SSR-40A?

A: Use a zero cross type relay in environments where reducing electrical noise and ensuring smooth current switching are crucial, such as sensitive electronic control or precise industrial automation tasks.

Q: Where is the UNISON SSR 40A commonly applied?

A: This relay is commonly found in factories, automation panels, HVAC systems, and heater control circuits, where dependable and noiseless switching is required.

Q: What benefits does the SSR-40A offer in power efficiency and safety?

A: With a high efficiency of 98% and robust dielectric strength, the SSR-40A supports energy-saving operations and safe handling of AC loads, ensuring durable performance and protection for connected devices.
